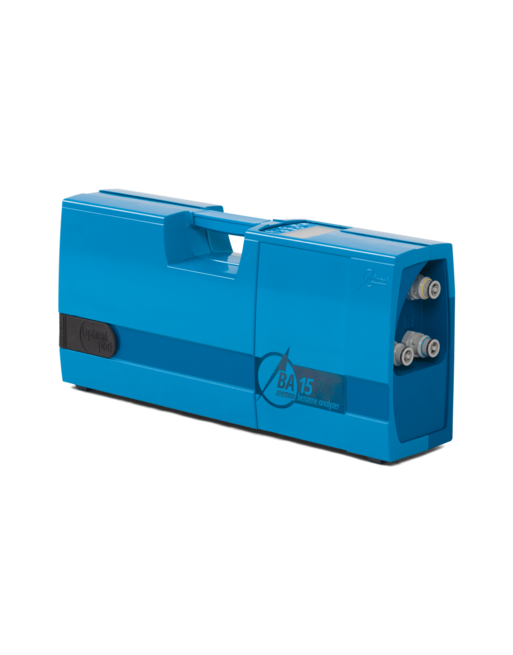

BA-15 Benzene Analyzer
Reference : BA-15
BA-15 is a multifunctional benzene analyzer based on the differential absorption spectrometry using the direct Zeeman effect.
Due to the low power consumption and light weight the spectrometer is especially useful in the natural gas production and processing industries, in which benzene is often main toxicant.
The BA-15 Analyzer is intended for measuring BENZENE vapour concentration in the ambient air and in the air of residential quarters and production areas.
The analyzer can be used for on-stream measuring of BENZENE vapour concentration in the air both in a stationary mode and for continuous survey from vehicles.
The analyzer is a useful tool in industrial hygiene, ecological monitoring, technological process control and scientific research
Features & Benefits
- Simple to operate, fully automated, self-validating analyzer
- Real-time operation mode
- Low detection limit and high selectivity
- Built-in test cell and auto zero function
- Wide dynamic measuring range
- Controlled by a keypad or a computer via USB interface
- Data logger for 122 hours of data acquisition, averaging, and storage
- Rugged/Versatile design for indoor and field applications
- Rechargeable battery for up to 12 hours of operation
Principle of Operation
Differential absorption spectrometry with the direct Zeeman effect for interference-free measurement of the benzene concentration in air and gases.
Equipment & Options
The basic delivery set includes BA-15 portable benzene analyzer with the Monitoring Data Viewer software, intake hose/filter, charger, cables, shoulder bag, manual.
The analyzer can be equipped with a PDA computer for remote monitoring and data transmission.
Technical Specifications
Continuous measurement in air (gas) flow
Measurement range : 0.1 – 500 mg/m3
Averaging interval : 1 s – 5 min
Zero drift correction : Automatic
Air flow rate : 7–10 lpm
Dimensions : 470x110x210 mm
Weight : 7 kg
Power supply : 90–240 VAC, 50/60 Hz, 12 VDC
Power consumption : 40 W
