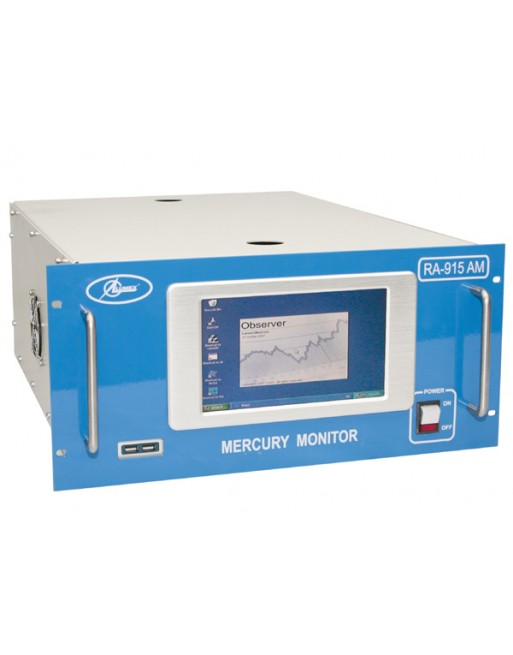

RA-915AM Automatic Air Mercury Monitor



Logo Lumex

Reference : RA-915AM



RA-915AM monitors are designed for continuous mercury measurements in ambient air, indoor air and in natural gas. Ideal for permanent unattended installation at air monitoring stations, RA-915AM monitor for ambient air allows ultra-sensitive measurements of background Hg concentrations and is compliant with the European standard EN 15852 for ambient air monitoring.

The monitors feature fully-automated unattended operation without the need for the monthly technician maintenance and frequent recalibration. The use of the instrument allows cutting down operation costs as the analyzer requires no argon cylinders for operation and no consumables.

The remote data transfer makes it possible to connect the monitor to data collection systems via RS232, Modbus, and analogue output.



Features & Benefits

  • Direct continuous measurements
  • Low detection limit and wide range of measurement
  • Highest selectivity
  • No chemicals, no carrier, and zero gases
  • Stable calibration
  • Automatic zero drift and span drift correction
  • Automatic recalculation to standard conditions
  • Auto control and preventive maintenance functions
  • Robustness and low maintenance
  • Customized operation parameters and communication protocol



Principle of Operation

Atomic absorption with Zeeman background correction.



Installation

The RA-915 AM monitor is designed for indoor operation or installation in climate controlled cabinets. The embedded PC controls the measurement procedure, data processing, and data transfer via RS-232/485 interface or current loop. Optional multiplexer enables sampling from 2 to 16 points. The monitor can be installed in a standard 19 inch rack.



Equipment and Options

RA-915AM Air Mercury Monitor

On request monitors may be equipped with a flow switching device for multiple sampling points



Technical Specifications

Analytical specifications

Range I : Measurement range : 0–2 000 ng/m3, Limit of Detection : 01

Range II : Measurement range : 0–150'000 ng/m3, Limit of Detection : 10

Range III : Measurement range : 0–3'000'000 ng/m3, Limit of Detection : 200

Zero drift correction : Automatic

Span correction : Automatic

Ambient air conditions

Air flow rate : 7–10 L/min

Air temperature : -20 to +40 °C

Sampling with multiplexer

Number of sampling points : 2-16

Sampling line : up to 150 m

Data output

Communication ports : RS 232/435; 2 x USB; LAN; Isolated 4–20 mA, Modbus (LAN or RS-485)

Status outputs : MEASURING; ZERO CONTROL; CALIBRATION; SERVICE; FAILURE

Dimensions, Weight, Power requirements

Power requirements : 110/240 VAC, 50/60 Hz; max 120 VA

Analyzer : 665x482x222 mm, 25 kg

Multiplexer : 665x482x222 mm, 15-25 kg



RA-915AM

Specific References

Download

Brochure RA-915AM

Lumex Instruments_RA-915AM_Mercury Monitor

Download (554.48KB)
