Analytical Characteristics

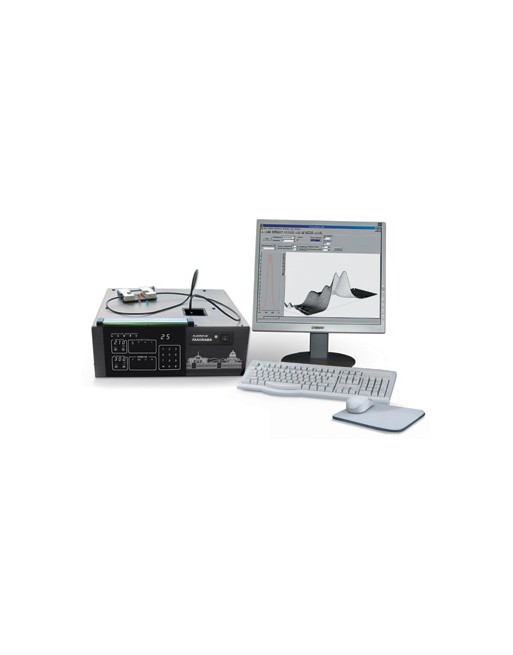

FLUORAT-02 Panorama incorporates a Xenon flash lamp as a light source, two monochromators for the luminescence excitation and detection channels, and a PMT as a detector of luminescence. To enhance the measurement accuracy, a correction with respect to the reference and transmission channels are available. The wavelength is set with a keypad or using external software.

Principle of Operation

Measurement of luminescence and transmittance characteristic including time-resolved ones of the sample while scanning a selected wavelength range as well as an HPLC detector with excitation and emission wavelength adjustment.

Application Examples

Analysis of fluorescence spectra of liquids and glass;

Analysis of absorption spectra of solutions, glass, and surfaces;

Investigation of time-resolved fluorescence kinetics;

Development of new analytical techniques.

Equipment & Options

FLUORAT-02-Panorama;

Kits for analysis;

Fiber optics fluorometric attachment;

Fiber optics photometric attachment;

Thermostabilzed sample compartment;

External monochromators.

Technical Specifications

Excitation spectral range : 210-840(1) nm

Transmission spectral range : 210-840(1) nm

Luminescent spectral range : 210-690 (840)(1) nm

Spectral resolution : < 8 (15)(2) nm

Wavelength accuracy : < 3 nm

Signal-to-noise ratio(3) : > 100 (200)(4)

Liquid cell volume : 0.01-3 mL

Standard Q10 cuvette : 3 mL

Power requirements : ~110/220 V, 50/60 Hz, 60 W

Dimensions : 400x355x150 mm

Weight : 13 kg

(1) Upon customer's request

(2) 8 nm is recommended for spectral applications, and 15 nm is recommended for chromatographic applications

(3) For Raman scattering with the excitation wavelength of 350 nm (400 nm emission) and the response time of 2 sec.

(4) Signal-to-noise ratio is 100 for instruments with a 8 nm resolution and 200 for instruments with a 15 nm resolution
